Truck Model FL511 Fuel Pump 0117-3937 01173937 01172781 01172782

Guangzhou Taishuo Machinery Equipement Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Truck Model FL511 Fuel Pump 0117-3937 01173937 01172781 01172782

Brand Name : Hi-TTS

Model Number : 0117-3937 01173937

Place of Origin : China

MOQ : 1 pcs

Price : negotiate a price

Payment Terms : L/C, D/A, D/A, T/T, Western Union, MoneyGram

Supply Ability : 5000/pcs per month

Delivery Time : 3-5 days

Packaging Details : Canton

Part Name : Fuel Pump

Model : Truck Model FL511

MOQ : 1 Piece

Diameter : STD

Color : Silver

Weight : 0.5KG

Engine : FL511

Material : Steel

Quality : Original or OEM

OEM No : 0117-3937 01173937

Contact Now

Truck Model FL511 Fuel Pump 0117-3937 01173937 01172781 01172782

Product Description:

Fuel pump

A fuel pump is a component used in many liquid-fuelled engines (such as petrol/gasoline or diesel engines) to transfer the fuel from the fuel tank to the device where it is mixed with the intake air (such as the carburetor or fuel injector).

Carbureted engines often use low-pressure mechanical pumps that are mounted on the engine. Fuel injected engines use either electric fuel pumps mounted inside the fuel tank (for lower pressure manifold injection systems)[1] or high-pressure mechanical pumps mounted on the engine (for high-pressure direct injection systems).

Some engines do not use any fuel pump at all. A low-pressure fuel supply used by a carbureted engine can be achieved through a gravity feed system, i.e. by simply mounting the tank higher than the carburetor. This method is commonly used in carbureted motorcycles, where the tank is usually directly above the engine.

Features:

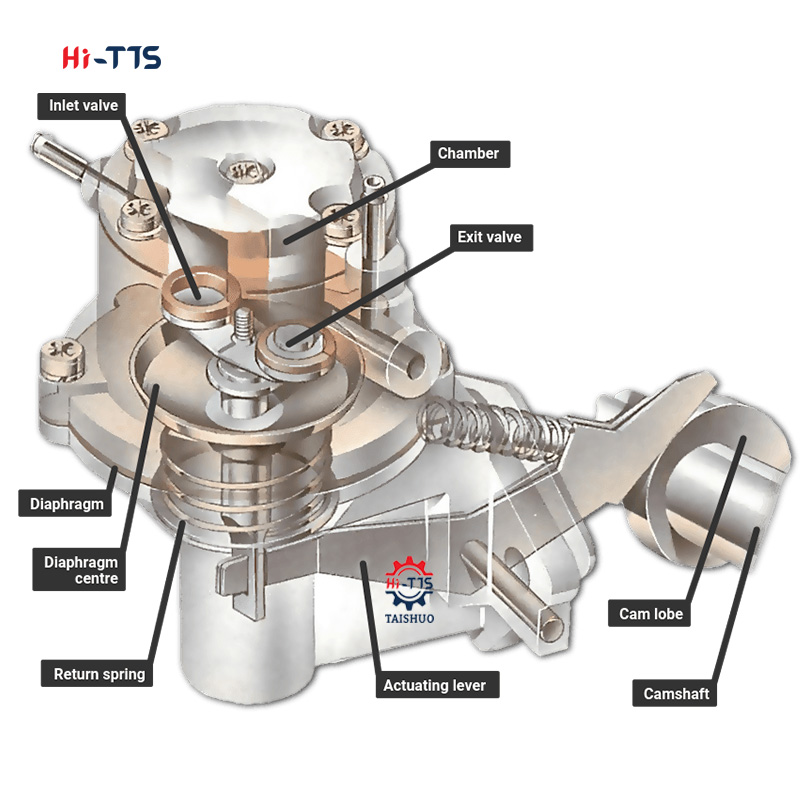

Mechanical fuel pump

A mechanical fuel pump is driven by the camshaft , or by a special shaft driven by the crankshaft . As the shaft turns, a cam passes under a pivoted lever and forces it up at one end.

The other end of the lever, which is linked loosely to a rubber diaphragm forming the floor of a chamber in the pump, goes down and pulls the diaphragm with it.

When the lever pulls the diaphragm down, it creates suction that draws fuel along the fuel pipe into the pump through a one-way valve .

As the revolving cam turns further, so that it no longer presses on the lever, the lever is moved back by a return spring , relaxing its pull on the diaphragm.

The loosely linked lever does not push the diaphragm up, but there is a return spring that pushes against it.

The diaphragm can move up only by expelling petrol from the chamber. The petrol cannot go back through the first one-way valve, so it goes out through another one leading to the carburettor.

The carburettor admits petrol only as it needs it, through the needle valve in its float chamber .

Truck Model FL511 Fuel Pump 0117-3937 01173937 01172781 01172782

Technical Parameters:

Model Truck Model FL511
Product Name Fuel Pump
Part number 0117-3937 01173937
Material Metal
Weight 0.5KG
Colour: Silver

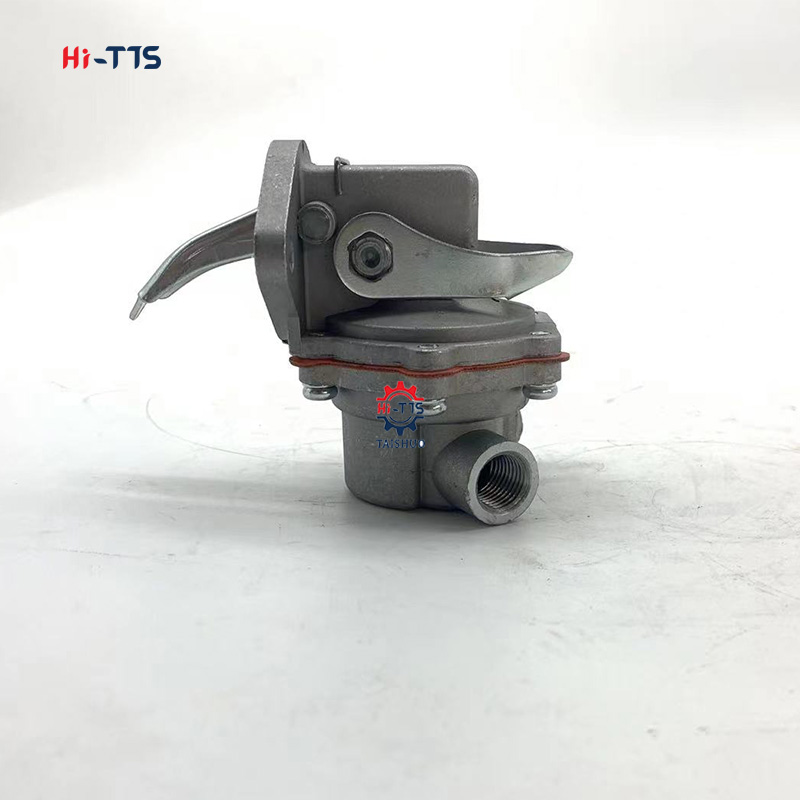

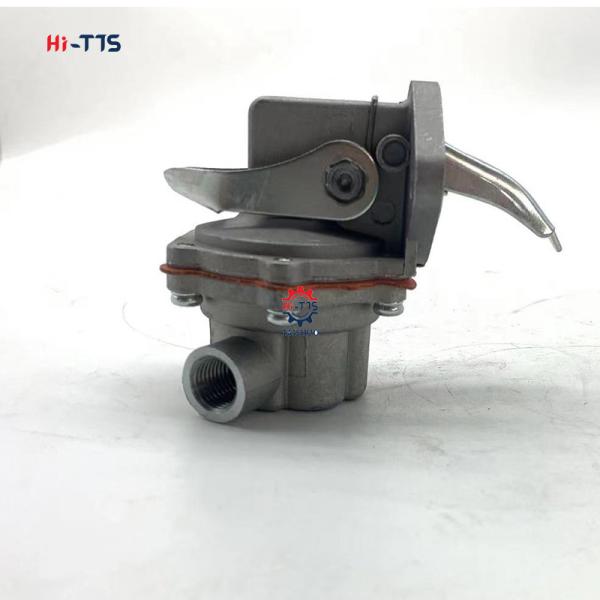

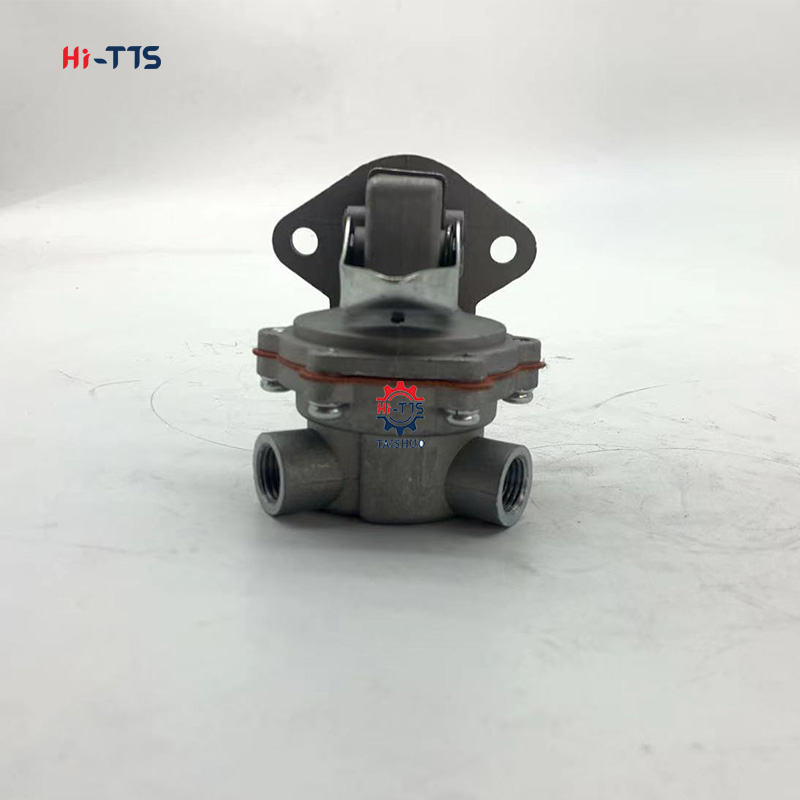

Photos:

Truck Model FL511 Fuel Pump 0117-3937 01173937 01172781 01172782

Truck Model FL511 Fuel Pump 0117-3937 01173937 01172781 01172782

More products:

Model Part No Part Name
6D125 6261-71-8240 FUEL PUMP
6D140 ND092130-0360 FUEL PUMP
DK152200-5320 FUEL PUMP
6HK1 8-98009397-1 FUEL PUMP
S4S S6S 32A65-10450 FUEL PUMP
J05E 294000-0619 FUEL PUMP
PC400-7 6261-71-8210 FUEL PUMP
RE68345 FUEL PUMP
TCD2012 VOE04290596 FUEL PUMP
