Engine Liner J05C J05E J08E 11462-E0060 S1146-73200 S1146-73210 11467-2611
Product Description:
How do you know if your cylinder liner is bad?
Check the cylinder liner for cracks, freeting or scoring. If any crack, fretting or scoring is detected, the cylinder must be replaced with a new one. If this is not the case, continue looking for cavitation erosion on the liner. Erosion results from poor cooling system maintenance.
How does a cylinder liner work?
A cylinder liner provides a smooth sliding surface that allows the reciprocating motion of a piston. The friction resistance offered by the inner walls of the liner is negligible; this allows the piston rings to slide over the inner walls of the liner.
What is the difference between cylinder and cylinder liner?
A cylinder liner is essentially a cylinder fitted to the engine block; it becomes an integral part of its operation. Essentially, they are the interior metal protection from the wear and tear of the motor. Additionally, they will protect it from heat and impurities but in different ways depending on their design.
Features:
What are the main functions of cylinder liner?
The cylinder liner acts as inner wall of the cylinder and forms a sliding surface for the piston rings while retaining the lubracant within. The most important function of cylinder liners is the excellent characteristics as sliding surface.
Technical Parameters:
| Model | J05C J05E J08E |
| Product Name | Cylinder Liner Cylinder Sleeve |
| Part number | 11462-E0060 S1146-73200 S1146-73210 11467-2611 |
| Material | Steel |
| Weight | 1.4KG |
| Diameter | 117mm |
| Application: | Diesel Engine |
| Single package size: | 15X12X5 cm |
Applications:
What are the advantages of cylinder liners?
Engine manufacturers use lined cylinders because of the advantages this system offers, the main reasons being: Greater resistance. Making liners separately from the engine block allows the use of special higher performance materials than those used for the construction of the block itself.

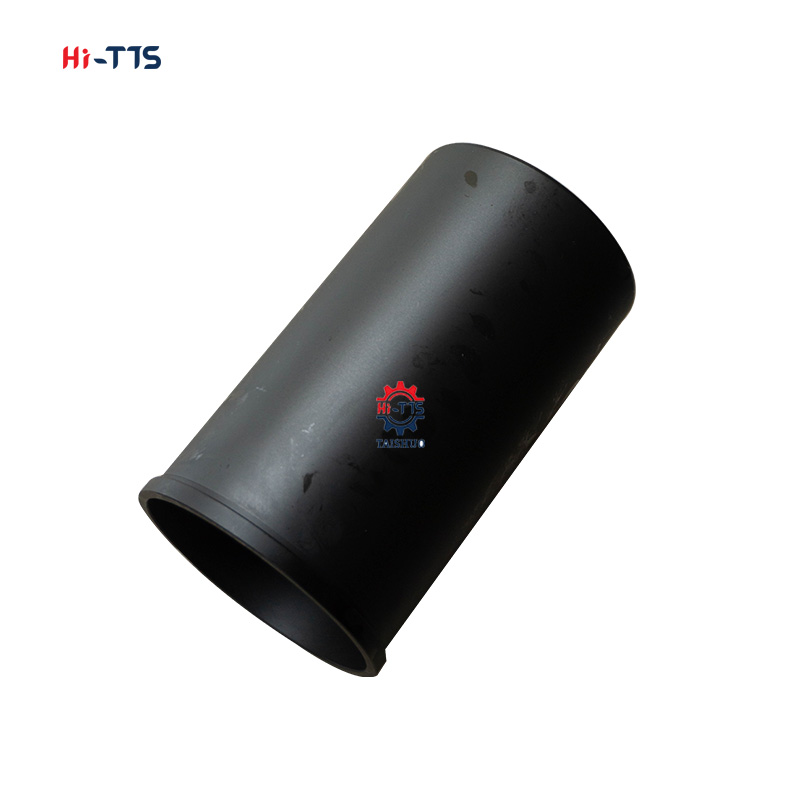

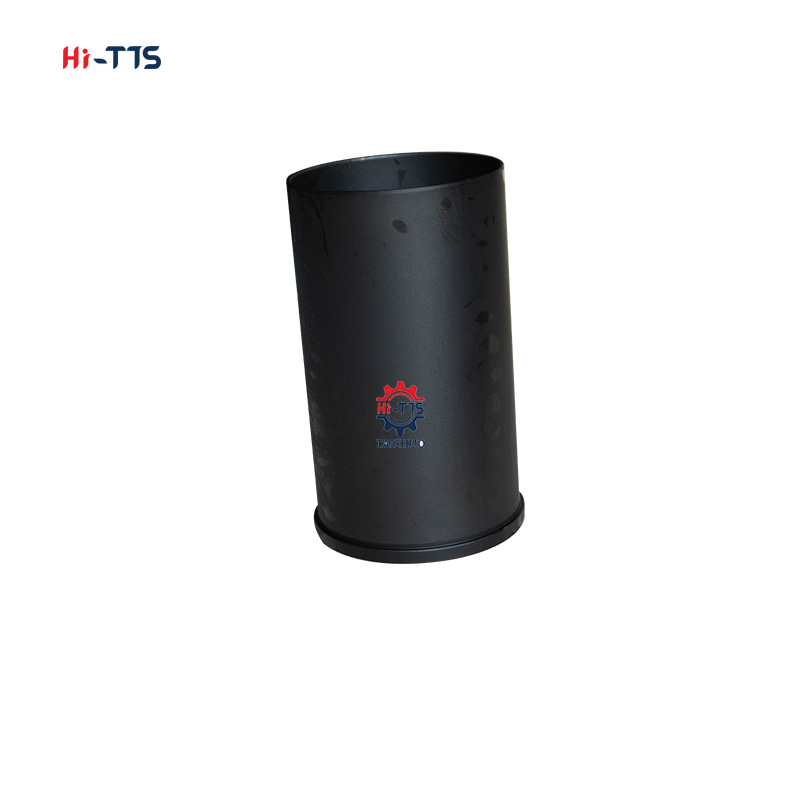

Photos:
More products:
| HINO | WO4D | 11467-1781 | Φ104*Φ107*201 |
| W06D | 11467-1771 | Φ104*Φ107* 200 |
| EL100 | | Φ116*Φ138*222 |
| EK100 | 11467-1270 | Φ137*Φ164*267 |
| EF750 | 11467-1091 | Φ137*Φ165*248 |
| EF550 | 11407-1690 | Φ135*Φ165*248 |
| F17C | 11467-1702 | Φ139*Φ166*248 |
| EH700 | 11467-1200 | |
| H07CT | 11467-1210 | Φ110*Φ113*204 |
| EH100 | 11467-1040 | Φ105*Φ110*20 6 |
| J05E/J08E.F | 11467-2611 | Φ112*Φ115 *203 |
