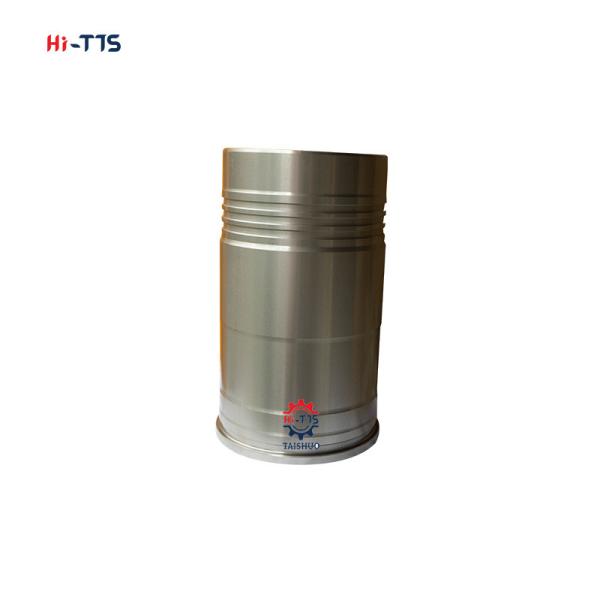

Excavator Engine C15 3406 Liner Cylinder Sleeve 197-9322 1979322
Product Description:
What is a cylinder liner?
It is a cylinder that is fitted to the engine block to form the cylinder, and is one critical function part that forms the engine interior.
In Japan they are usually called Cylinder Liners, but some countries (companies) call them Cylinder Sleeves.
How do you know if your cylinder liner is bad?
Check the cylinder liner for cracks, freeting or scoring. If any crack, fretting or scoring is detected, the cylinder must be replaced with a new one. If this is not the case, continue looking for cavitation erosion on the liner. Erosion results from poor cooling system maintenance.
How does a cylinder liner work?
A cylinder liner provides a smooth sliding surface that allows the reciprocating motion of a piston. The friction resistance offered by the inner walls of the liner is negligible; this allows the piston rings to slide over the inner walls of the liner.
Features:
What are the main functions of cylinder liner?
The cylinder liner acts as inner wall of the cylinder and forms a sliding surface for the piston rings while retaining the lubracant within. The most important function of cylinder liners is the excellent characteristics as sliding surface.
Technical Parameters:
| Model | C15 3406 |
| Product Name | Cylinder Liner Cylinder Sleeve |
| Part number | 197-9322 1979322 |
| Material | Iron |
| Weight | 8KG |
| Diameter | 137mm |
| Size | Bore :137mm/ Height:274.5mm |
| Application: | wheel loader 980H buildozer D8N D8R D9R excavator E374D E365C |
Applications:
What are the main functions of cylinder liner?
The cylinder liner acts as inner wall of the cylinder and forms a sliding surface for the piston rings while retaining the lubracant within. The most important function of cylinder liners is the excellent characteristics as sliding surface.
What are the advantages of cylinder liners?
Engine manufacturers use lined cylinders because of the advantages this system offers, the main reasons being: Greater resistance. Making liners separately from the engine block allows the use of special higher performance materials than those used for the construction of the block itself.
Photos:
More products:
| MODEL | PART NO. | SIZE:(in'out'total) |
| 4D92 | 6140-21-2211 | |
| 4D94 | 6144-21-2211 | |
| 4D95 | 6207-21-2110 | Φ94.2*Φ98*180 |
| S4D95 | 6207-21-2121 | Φ94.2*Φ98*180 |
| 6D95 | 6207-21-2110 | Φ95*Φ98*180 |
| 6D102 | 6736-29-2140 | Φ102*Φ105*200 |
| S4D105 | 6130-22-2213 | Φ105*Φ127*228 |
| S6D105 | 6136-21-2210 | Φ105*Φ127*223 |
| S6D110 | 6138-21-2210 | |
| 6D107 | | Φ106*Φ110*203 |
| S6D108.F | 6222-21-2210 | 108*111.3*219.5 |
| 4D120 | 6110-21-2212 | |
| 4D130 | 6115-21-2211 | |
| S6D110 | 6138-21-2210 | Φ110*Φ115*225 |
| S6D125 | 6150-21-2221 | Φ125*Φ153*256 |
| S6D140 | 6211-21-2210 | |
| S6D155 | 6128-21-2215 | Φ155*Φ184*327 |
| S6D170 | 6162-23-2210 | |
| D6D | | Φ97*Φ101*104.8 |
| D6D+ | | Φ97*Φ102*104.8 |
| D6D.F | | Φ98*Φ101*104.8 |
| D6E | | Φ97*Φ101*188 |
| D6E+ | | Φ97*Φ102*188 |
| D6E,F | | Φ98*Φ101*188 |
