ESD5111 Speed Control Unit 12V 24V Speed Governor Controller

Name: ESD5111 Speed Control Unit 12V 24V Speed Governor Controller
Brand: Hi-TTS
Price: 1 USD

ESD5111 Speed Control Unit 12V 24V Speed Governor Controller Manufactures

Brand Name : Hi-TTS

Model Number : ESD5111

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000/pcs per month

Delivery Time : 3-5 Work Days

Product Name : SPEED CONTROL UNIT

Engine : ESD5111

MOQ : 1 Set

Qaulity : Top Quality

Payment Term : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Packing : Neutral Package

Voltage : 12V, 24V

Specifiion : 18*17.5*5cm

Contact Now

ESD5111 Speed Control Unit 12V 24V Speed Governor Controller

Quick Details:

Speed Range:1KHz-7.5KHz

Thermal Stability:Max ±1%

IDLE Adjustment:160 ± 20Hz ~ rated speed of 95%

External Speed Adjustment:± 200Hz (external 1KΩ) AUX.

Input Sensitivity:148Hz / 1V., ± 10Hz., Impedance 1MΩ START FUEL.

Adjust:160 ± 20Hz ~ 70% of rated speed RAMP.

Time Adjustment:1.5 ~ 20Sec. 10V.

Output Current:Maximum 20mA environment

Operating Temperature Range:-40ºC ~ 85ºC

Operating Humidity Range:Max 95%

Save Temperature:-55ºC ~ 90ºC

Shock:20-100HZ 500mm/Sec

Voltage:12V and 24V DC battery systems

Ground Polarity:negative electrode

Power Consumption:50mA

Actuator Continuous Current:minimum 2.5A; maximum 10A

Speed Sensor Signal:0.5 ~ 120 RMS

Weight: 0.75 kgs

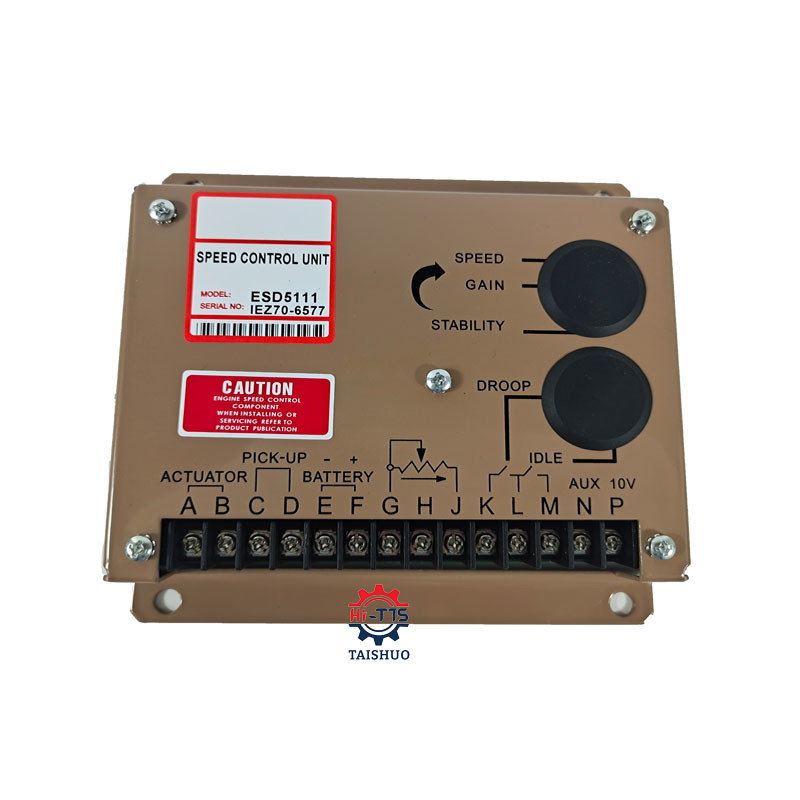

Photo:

ESD5111 Speed Control Unit 12V 24V Speed Governor Controller
